cushion pack – package, cushion and protect the environment

CUSHION PACK IS THE EASIEST AND A VERY CHEAP WAY TO RECYCLE OLD CARDBOARD / BOXES AND CREAT VALUE WITH IT AT THE SAME TIME BY MAKING PADDING MATERIALS!

We are the official representative of Cp Cushion Pack GmbH in the Baltics and Iceland.
For more information, call +372 544 12345 or email getter@profilgate.ee
or come and see the demo at Vae 22, Laagri Estonia.

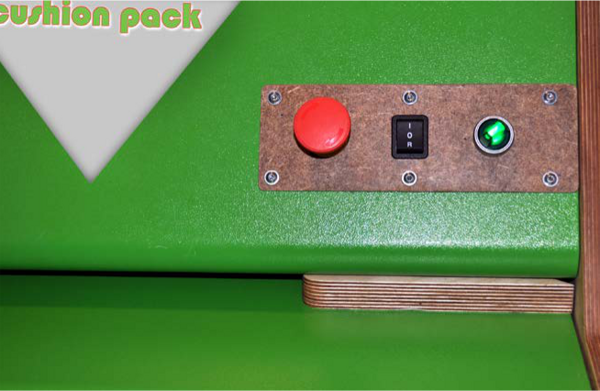

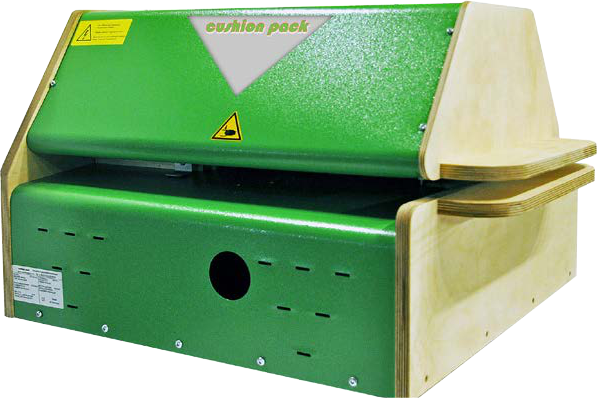

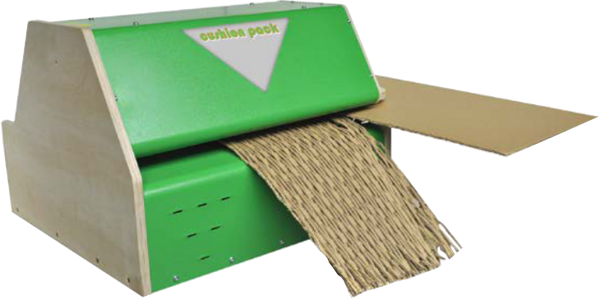

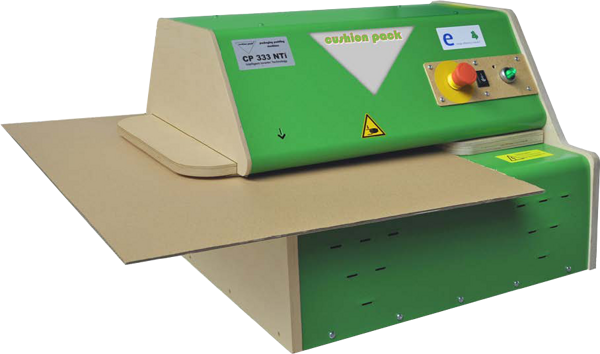

CP 333 NTi  table top model (1845€*)

Not only is the packaging padding machine CP 333 NTi produces environmentally friendly packaging padding from old, used cardboard boxes, with its new design it consistently further develops this basic ecological concept. For example, the body of the CP 333 NTi is made of 70 % sustainable raw materials (laminated board - plywood and MDF panels) and the machine is produced exclusively with renewable energy resources.

See more detailed information below! To order, please call +372 544 12345 or write to getter@profilgate.ee

 ---------------------------------------

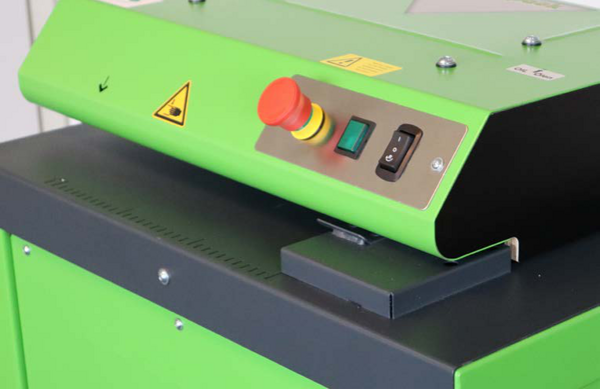

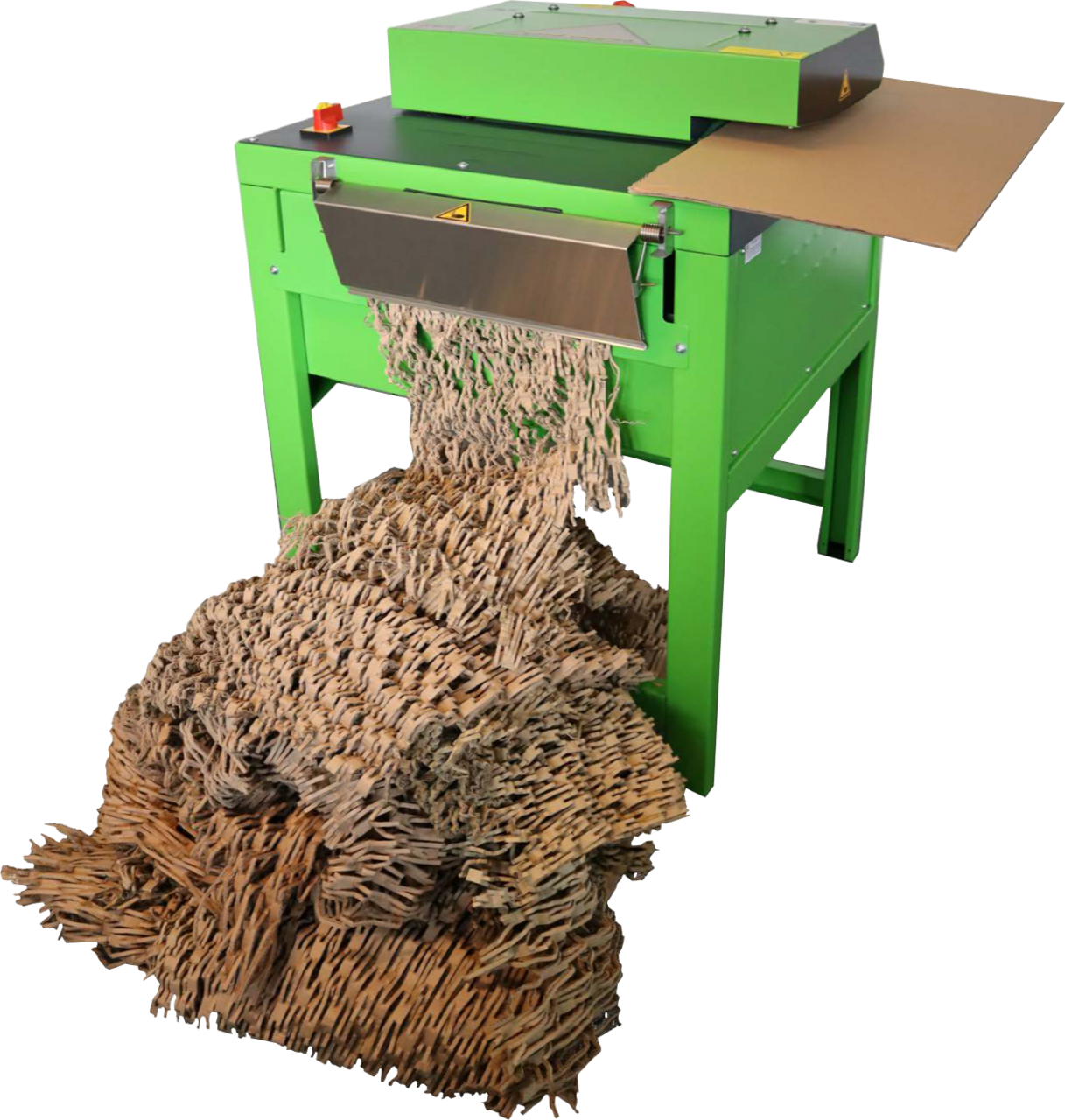

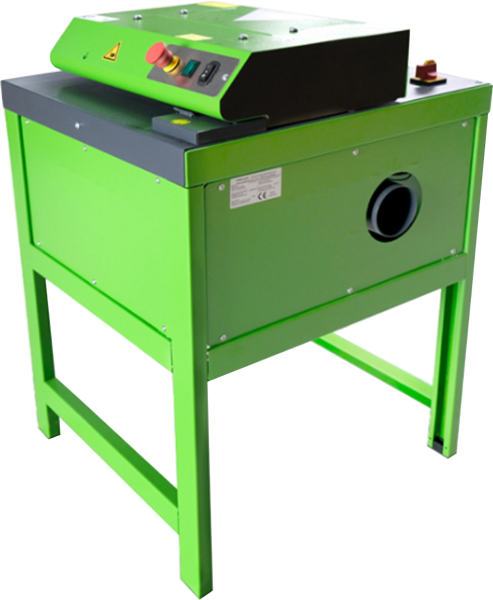

CP 316/320 S3i
single phase models (2655€* / 3235€*)
MOST POPULAR MODEL!

Up to 30 % energy saving with same output!
All this is possible with the new drives at  cushion pack!

Energy-efficient drive technology thanks to the use of a frequency converter:

  • high motor torque even at low speeds
  • high dynamics
  • high degree of efficiency
  • and above all energy efficiency


See more detailed information below! To order, please call +372 544 12345 or write to getter@profilgate.ee


 ---------------------------------------

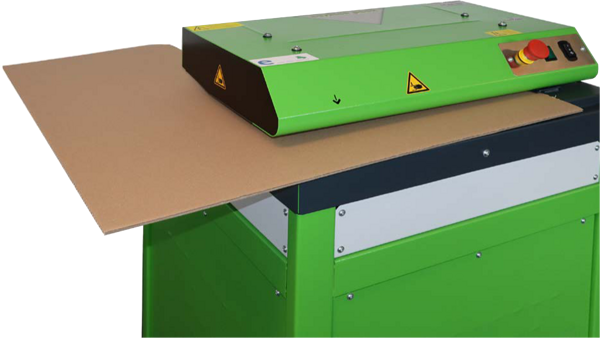

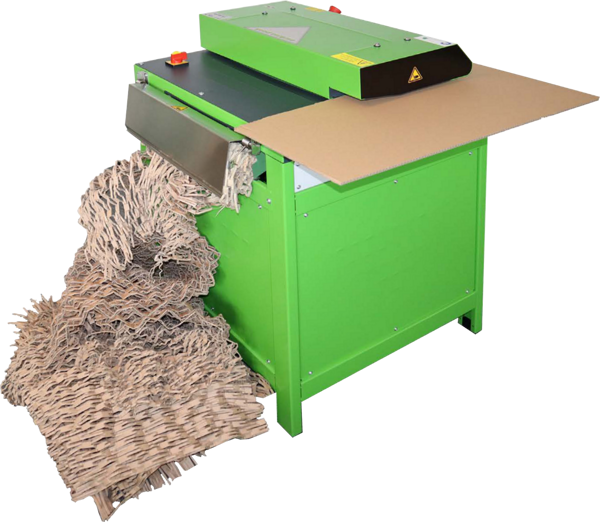

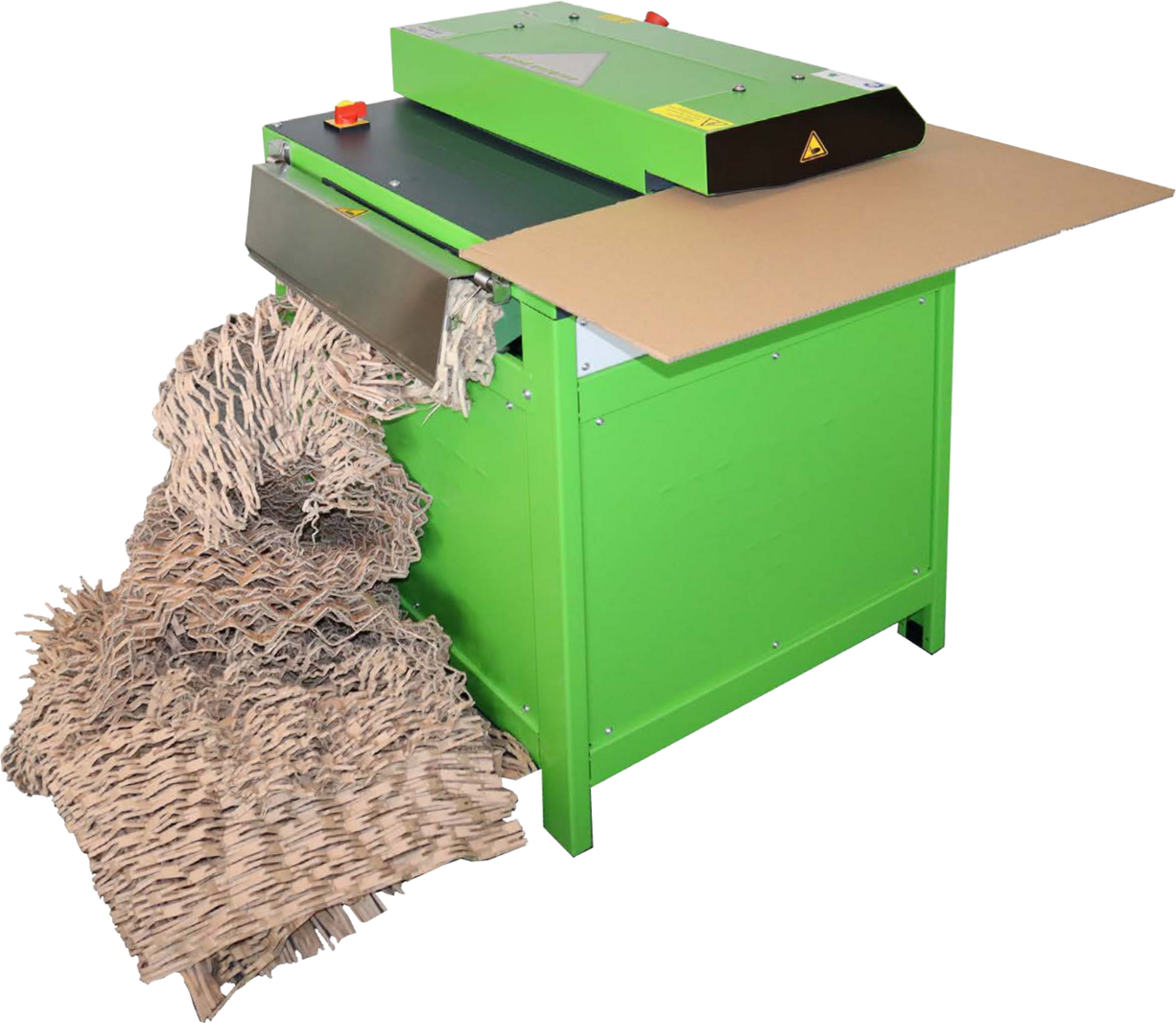

CP 422 S3i
1 or 3 phases, padding size 42 cm (5485€*)

  • simple controls
  • padded or flat material
  • 3-phase or 1-phase available

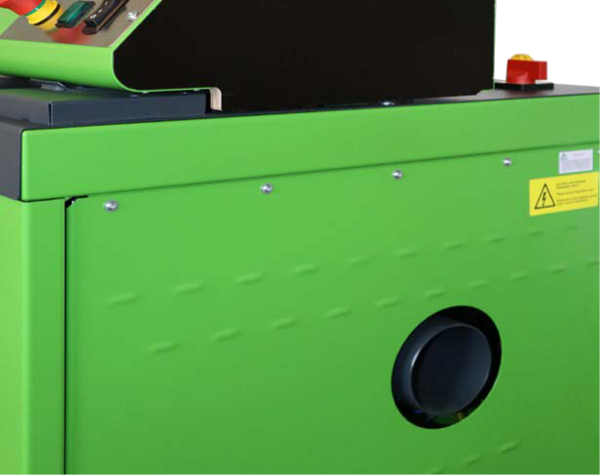

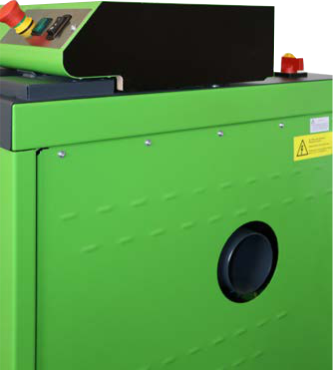

  • built-in dust extraction device
  • padding material up to 42 cm width





  • See more detailed information below! To order, please call +372 544 12345 or write to getter@profilgate.ee



     ---------------------------------------

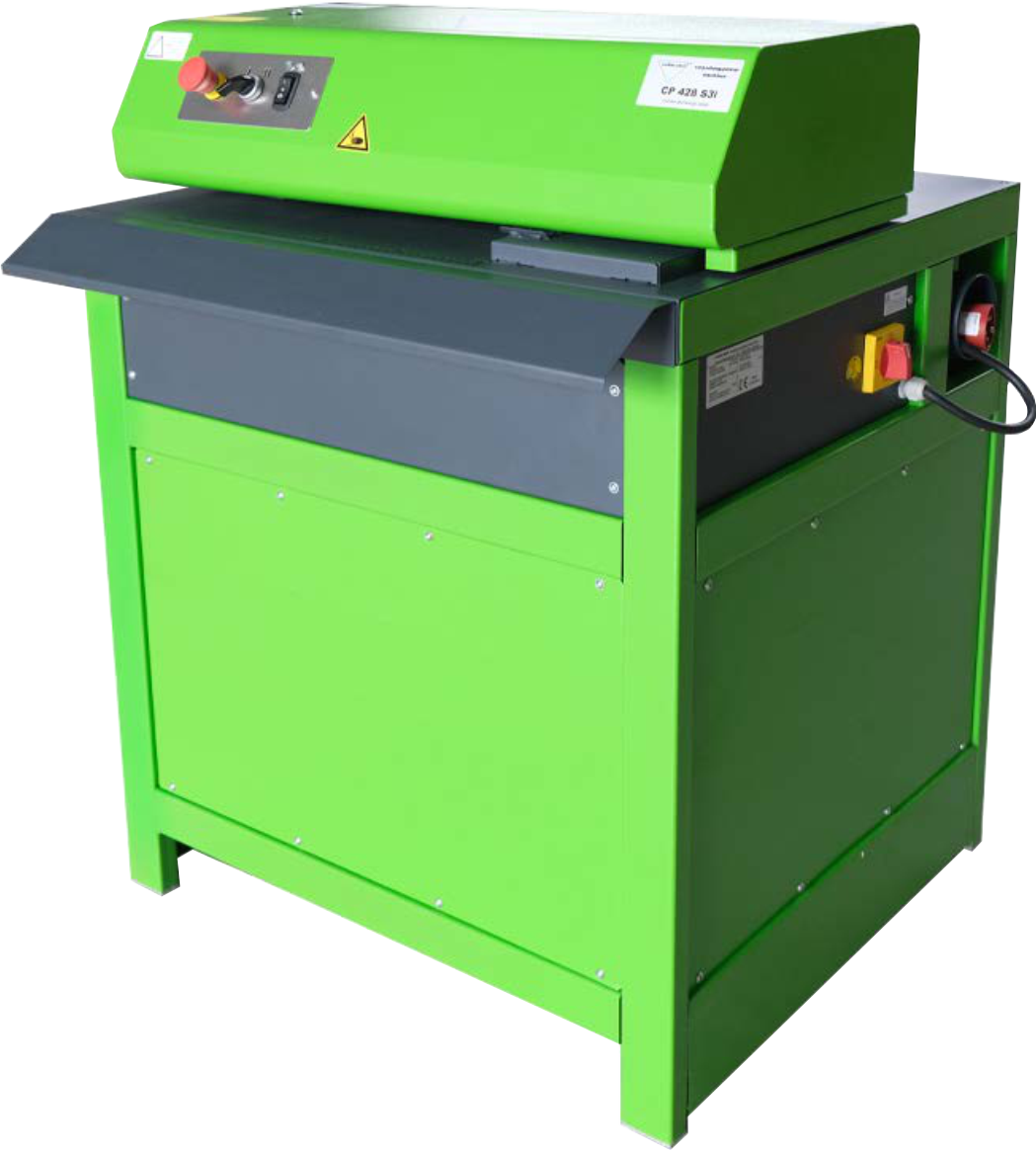

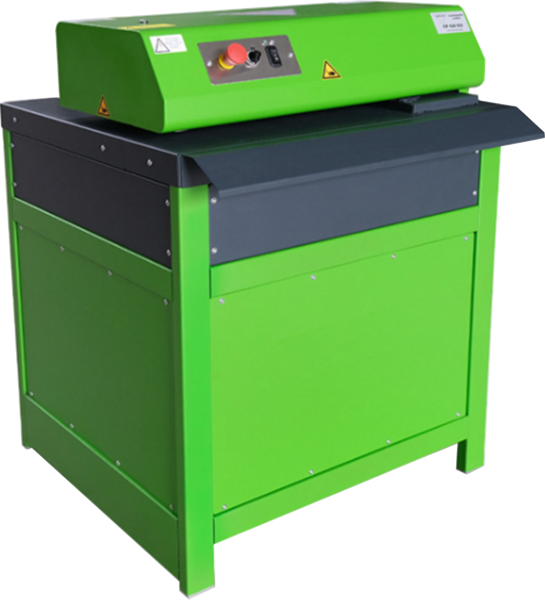

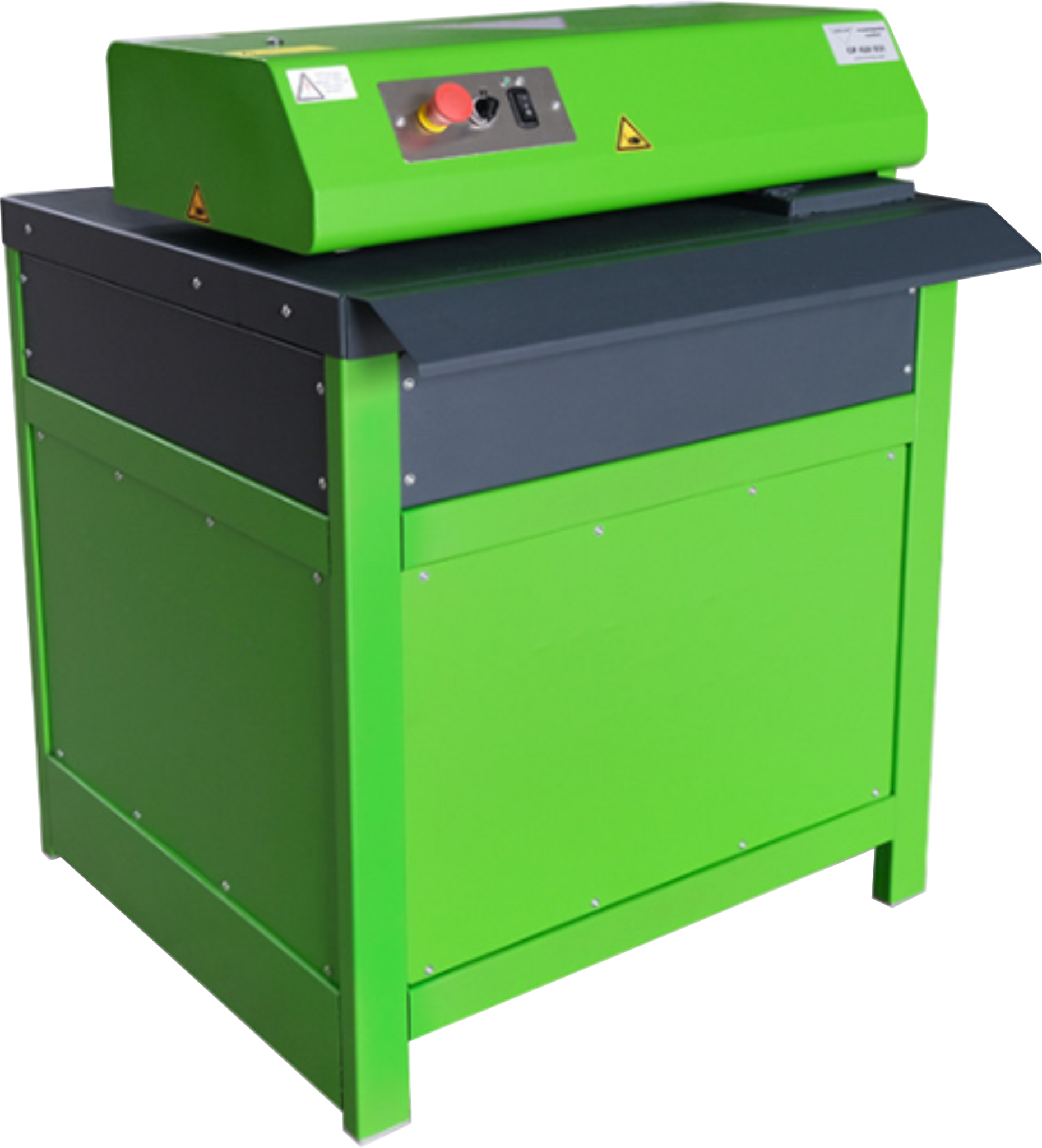

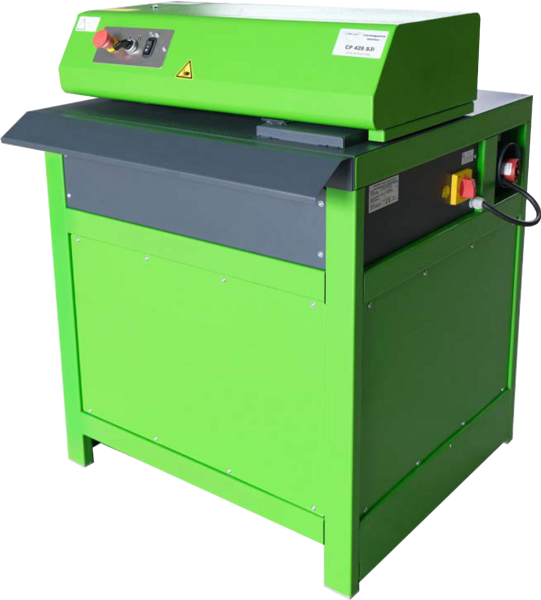

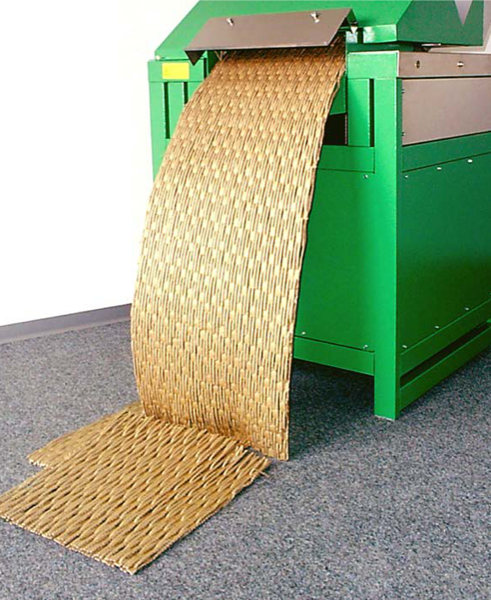

    CP 428 S3i / CP 430 S3i  3 phases, padding size 42 cm (7160€* / 8775€*)
    • speed control
    • high production output
    • invertertechnology inside
    • powerfull gearbox motors
    • built-in dust extraction device

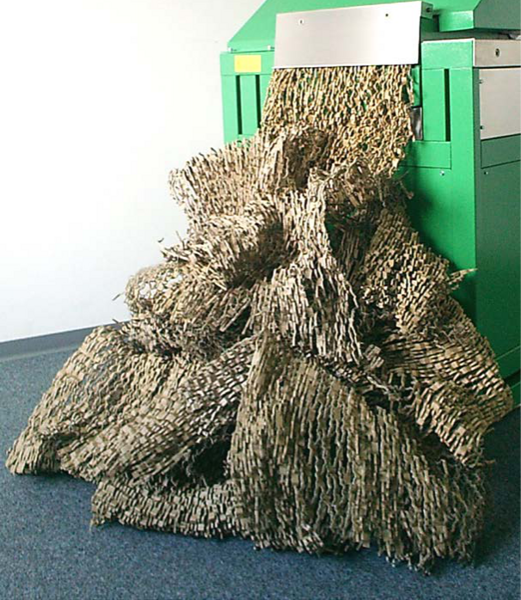

    • padding material or flat padding mats







    See more detailed information below! To order, please call +372 544 12345 or write to getter@profilgate.ee.


     ---------------------------------------

    Technical Data
    CP333 NTi
    CP 316 S3i
    CP 320 S3i**
    CP 422 S3i
    CP 422 S3i 3ph
    CP 428 S3i
     CP 430 S3i
    Loading width – cardboard size
    endless
    endless
    endless
    endless
    endless
    endless
     endless
    Cutting width – padding
    320mm
    320mm
    320mm
    420mm
    420mm
    420mm
     420mm
    Inlet height
    12mm
    12mm15mm18mm18mm20mm 20mm
    Production output
    1-2m³/h
      1-2m³/h
    2-3m³/h
    4-6m³/h
    4-6m³/h
    6-9m³/h
      7-10m³/h
    Throughput rate
    10m/min
    10m/min
    12m/min
    13m/min
    13m/min
    12/14m/min
     14/16m/min
    Motor capacity
    0,55 KW
    0,75 KW
    0,75 KW
    1,5 KW 1Ph
    1,5 KW 3Ph
      3,0 KW 3Ph
     4,0 KW 3Ph
    Main voltage
    230 V /
    50-60 Hz
    230 V /
    50-60 Hz
      230 V /
    50-60 Hz
    230 V / 50 Hz
    400 V / 50 Hz
    400V / 50 Hz
     400V / 50 Hz
    Noise emission no load
    59 dB(A)
    60 dB(A)
    60 dB(A)
    60 dB(A)
    60 dB(A)
    61 dB(A)
     64 dB(A)
    Noise emission operating cycle
    65 dB(A)
    68 dB(A)
    68 dB(A)
    68 dB(A)
    68 dB(A)
    71 dB(A)
     78 dB(A)
    Dimensions HxWxD
    (mm)

    460x580x
    620

    1010x660x
    660

    1010x660x
    660

    1010x660x
    660

    1010x660x
    660

    1100x750x
    800

     1100x750x
    800

    Weight
    78 kg
    92 kg
    110 kg
    125 kg
    125 kg
    245 kg
     259 kg
     Price* 1845 EUR  2655 EUR  3235 EUR  5485 EUR  5485 EUR  7160 EUR  8775 EUR

    * price does not include transport and VAT.
    **  with built-in dust extraction device
